Viessmann 5077 Coach lighting 11 LEDs WHITE w decoder

Viessmann 5077 Coach lighting 11 LEDs white w decoder

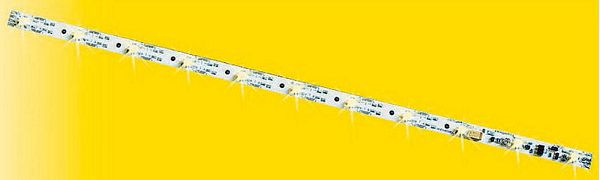

Coach lighting with 11 yellow, maintenance-free LEDs. A multi-protocol digital decoder (DCC and Motorola) is integrated. Brightness adjustable by CVs and potentiometer. Can be used in any coach prepared for lighting, by all manufacturers. By shortening the circuit board, it can be adapted to various wagon lengths. Power regulator integrated, to guarantee flicker-free lighting. Support for additional external capacitors. Various lighting effects are adjustable, for example, the simulation of gas-discharge lamps at startup, and the simulation of individual burned-out tubes. Power supply possible from the rail or over our conducting couplers (5048/5071). Suitable for AC, DC and digital operation. Connections are provided for rear lanterns (5056). Current draw approx. 20 mA.
Dimensions: approx. 8 x 254 mm.
