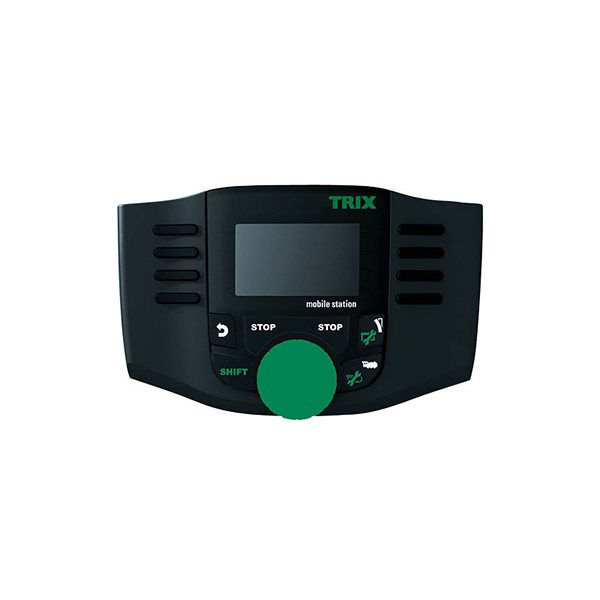

Trix T66955 Mobile Station
Model: This is a DCC digital hand control unit. 11 locomotives can be controlled with direct access. Locomotive selection can be done with the built-in Märklin Digital locomotive database or by means of digital addresses. 16 locomotive functions and 320 solenoid items can be controlled. There is a display of the function status in the built-in background-lighted b/w full graphic display. The Mobile Station has a built-in locomotive card reader. It also has a lighted red Stop button. There is a 1.9 amp output power section in the optionally available track connector box (60116). 2 Mobile Stations (66955 and/or 66950) can be connected independently of each other to the track connector box. When the Mobile Station is operated connected to the (60213-60216 and 60226), there is access to the Central Station settings (Central Station's complete locomotive list, all solenoid items on the Central Station's keyboards and with their designations). Dimensions 160 x 100 x 39 mm / 6-5/16" x 3-15/16" x 1-1/2".
Highlights: DCC controller for simple, easy operation. Background-lighted graphic display with self-explanatory pictograms. 16 controllable auxiliary functions. 320 solenoid items can be controlled. Built-in locomotive card reader. Simple wiring (Plug & Play) to the track connector box and the Central Station.
Features:
-
Digital locomotives or digital device for the Märklin Digital System (Motorola format).
-
DCC decoder
-
Digital decoder with up to 9 digitally controlled functions when operated with the 60652/60653 Mobile Station. Up to 5 functions when operated with the 6021 Control Unit. Up to 16 functions when operated with the 60212/60213/60214/60215 Central Station. The functions depend on how the locomotive is equipped.
Released in: - New items brochure 2016
