Tamiya 56366 RC MERCEDES BENZ AROCS 4151 8X4 Tipper Truck

Tamiya 56366 RC Mercedez Benz Arocs 4151  8X4 Tipper Truck

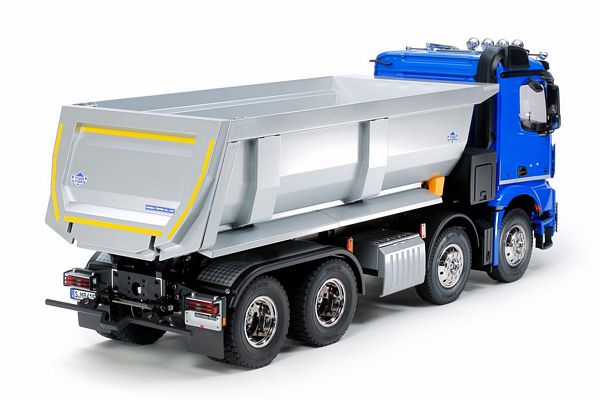

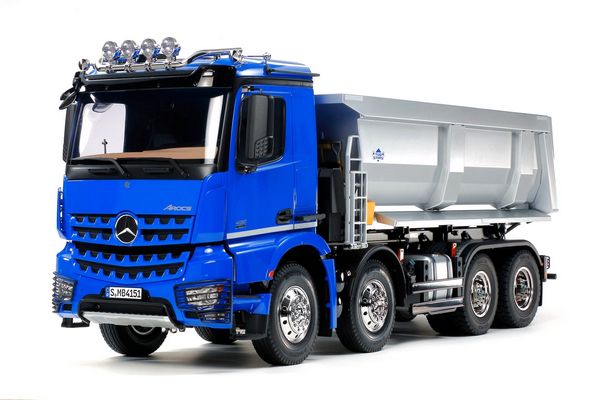

Description: This is a highly accurate 1/14 scale radio control model that recreates the Mercedes-Benz Arocs dump truck in the 8x4 configuration. It features a highly realistic truck bed section behind the cab which can be operated by the radio transmitter, using the separately-sold Actuator Set (Item 56545)

The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction shock-dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A separately sold 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations. (Both sold separately)

About the Model

• 1/14 scale R/C model assembly kit. Length: 667mm, Width: 196mm, height: 268mm.

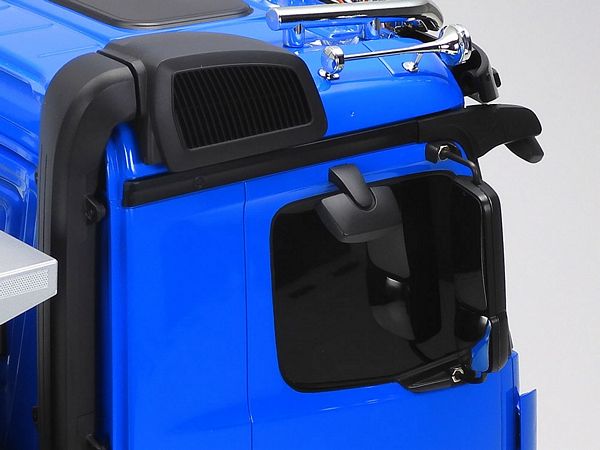

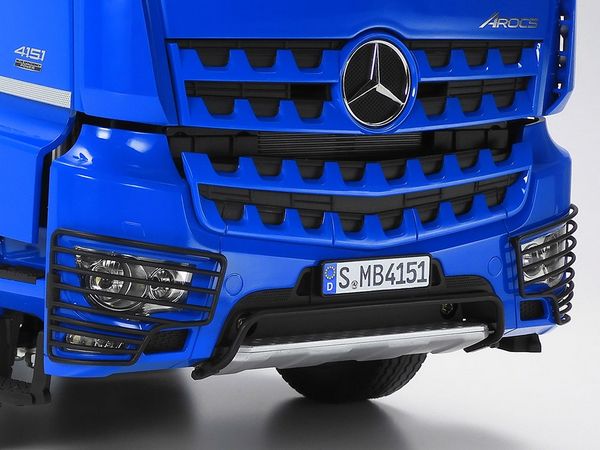

• The Arocs 4151 form is recreated with an injection molded body, including depictions of cab rails, intake duct and other details. Separate parts recreate side mirrors and visor, etc.

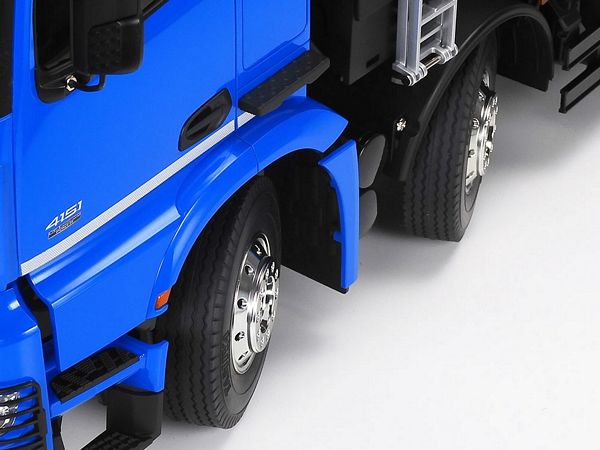

• Both front axles are steered, via a single servo. Wheels turn realistically at slightly different angles.
• The Tamiya 4-axle chassis has a tough ladder frame with aluminum side channels and plastic cross members.

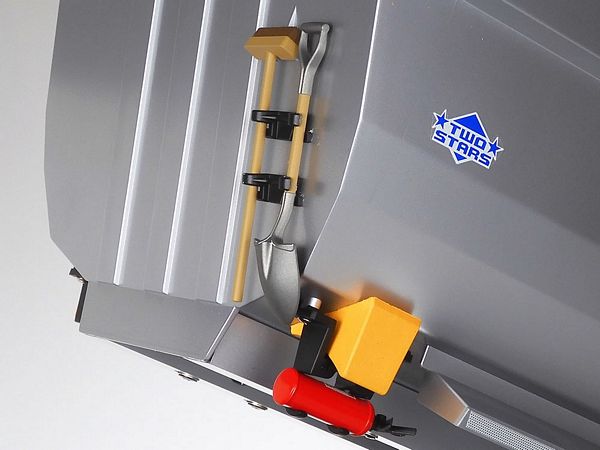

• Features a brand-new truck bed section comprised of metal subframe for superb durability.
• Install the separately sold Actuator Set (Item 56545) for realistic truck bed motion.
• TR mighty-tuned motor (35T) provides twin rear axles with ample power to carry loads in the truck bed.

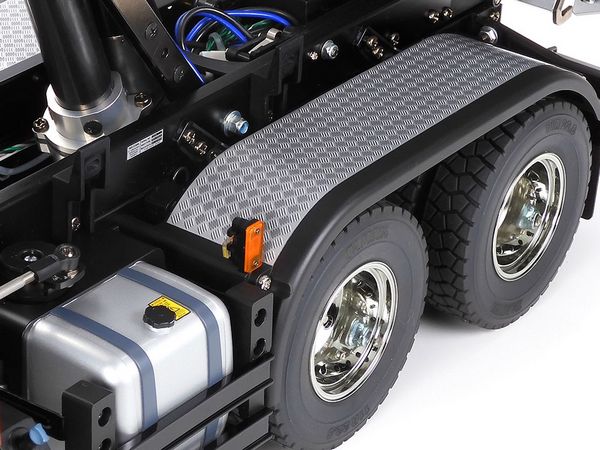

• The new battery case is located over the second axle, which allows access even when there are loads in the bed.
• The roof features a depiction of light pods on the visor, which can be fitted with LEDs for a realistic finish.

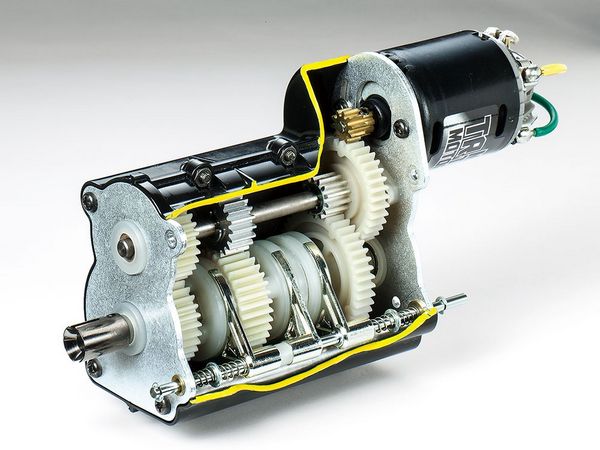

• 3-speed transmission can be controlled via a separately sold 4ch R/C transmitter.

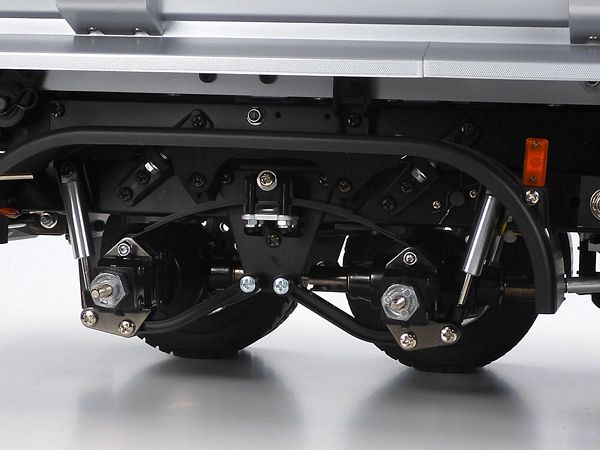

• Metal leaf spring dampers with built-in coil springs provide durable suspension.
• Use with separately-sold MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic lights and sounds.
• Requires: Tamiya Attack 4-channel radio, steering servo, ESC, 7.2volt battery & battery charger, and Tamiya TS spray paint.

SPECIFICATIONS

• Adjustable Gear Ratio 3-speed transmission
• Bearings Metal and Plastic Bushings
• Body Material ABS Plastic
• Body Stickers Included
• Chassis Material Aluminum and ABS plastic
• Chassis Type Semi-Truck
• Construction Type Assembly Kit
• Differential Type Gear
• Electronic Speed Control (esc) Sold Separately
• Led Lights Not Included, but sold separately
• Motor 540-brushed type
• Required To Complete  4- Channel Radio (Tamiya Attack), 2 Servos, ESC, 7.2  volt battery with compatible charger and tamiya TS & Acrylic-Lacquer Bottle Paints  --
• Scale 1/14
• Shock Damper Friction damper
• Suspension Leaf Spring
• Terrain Use On-Road

Separately Required Items

• 4-channel, 2-servo R/C unit with self-neutral stick type transmitter
• ESC
• R6/AA/UM3 batteries for transmitter
• Battery pack & charger

Electric Actuator Set for Tipper Truck(Sold Separately)

This set features parts to enable control of Tamiya 1/14 R/C tipper truck beds via separately sold transmitter. It includes geared motor, spindle shaft, link pieces and ACU-01 unit, and can raise beds carrying loads of up to 10kg. A clutch is installed to help prevent damage due to over-loading.


Realistic Lights, Sounds, and Vibration
Tamiya Multi-Function Control Units (sold separately) offer light, sound, and vibration operation to accompany your R/C truck experience. Engine sounds have been digitally recorded from an actual truck, and together with air horn, gear shifting, and many other realistic sounds, give you the feeling that you are driving the real thing! Headlights, brake lights, fog lamp, hazard lights and turn signal operations are also at your fingertips.
This is a highly accurate 1/14 scale radio control model that recreates the Mercedes-Benz Arocs dump truck. It features a highly realistic truck bed section behind the cab which can be operated by the radio transmitter, using the separately-sold Actuator Set.
The model's ladder frame chassis features aluminum side channels with resin cross members and is equipped with a highly realistic suspension utilizing metal leaf springs and friction dampers. A front-mounted motor and 3-speed transmission power the two rear wheel axles, which are fitted with built-in differentials to enable smooth cornering. A 4-channel R/C system and multi-function unit allow you to drive the vehicle and experience realistic lights, sounds and vibrations (Both sold separately).

Our Semi trucks and Highlifts use 3speed transmissions for more maneuverability and true scale realism. Whether you're hauling a big load or climbing some rough terrain, the ability to shift into low gear can make the difference. High speed runs are no problem once you kick it into 3rd gear, when its time to move out!

Both vehicle types require a 4 channel stick type radio for full function. If you're going to outfit your vehicle with one of our multifunction units (MFU), you will need to choose a analog radio. Shifting into gear is extremely easy once your transmission is adjusted correctly.

Below you will see the basic concept on how the servo moves the transmission into all three gears. It is best to get the transmission adjusted with your trims centered and only using the collar on the transmission rod to adjust final increments. This will allow for the best operation if you're using a MFU unit.
