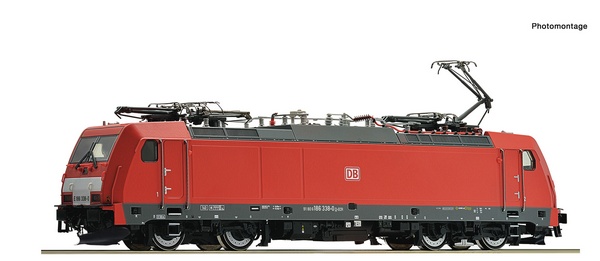

Roco 79109 Electric locomotive class 186 DB AG
Electric locomotive class 186 of the Deutsche Bahn.
■ Use in the international goods traffic
■ Many extra applied plug-in parts, partly executed in etching technology
■ Snowplough mounted on the chassis
■ In digital mode with switchable high beam and individually switchable headlights or tail lights
The class 186 is a multi-system locomotive of the second TRAXX generation from Bombardier. The four-system locomotive type F140 MS(2e) is based on the TRAXX F140 AC2 design. With additional equipment for use with direct current networks 1.5 kV (Netherlands, France) and 3 kV (Belgium, Poland, Italy), it was developed from 2004 onwards; provided it had appropriate additional equipment and train safety systems. With a service weight of 85 t, they have a power output of 5,600 kW and can reach a maximum speed of 140 km/h. Most of the 65 DB AG locomotives (DB Cargo, Euro Cargo Rail) operate in Germany, France and Belgium.
Operating number 186 338-0 Epoch: VI Gauge: H0 Elect. system: AC
|
General Data |
|
|
Coupling |
NEM shaft 362 with close coupling mechanism |
|
Minimum radius |
358 mm |
|
Flywheel |
yes
|
|
Scale |
294 |
|
Number of driven axles |
3 |
|
Number of axles with traction tyres |
2 |
|
Electrical |
|
|
Head light |
3 headlight, dependent on the direction of travel/2 tail lights, dependent on the direction of travel |
|
LED head light
Additional light function
Buffer capacitor
Sound
|
yes |
|
Interface |
Electrical interface for traction units PluX22 |
|
Control |
AC |
|
|
|
|
Digital decoder |
PluX22 |
|
Decoder-Type |
MX645P22 |
|
Measurements: |
|
|
Length over buffer: |
217 mm |
