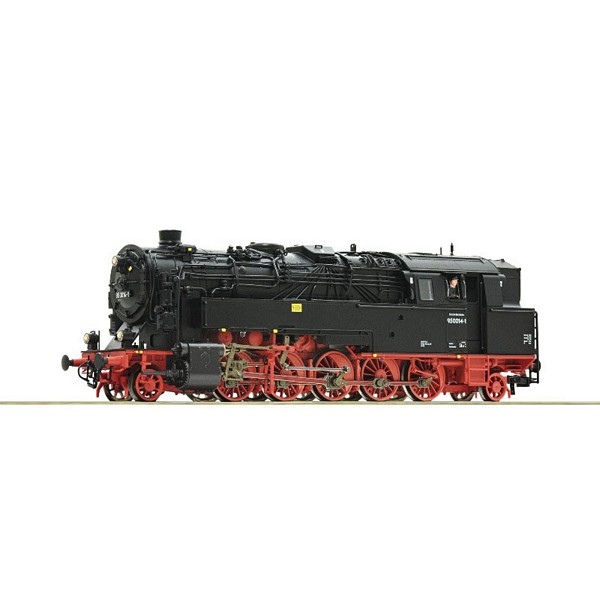

Roco 71096 Steam Locomotive Class 95 DR
Steam locomotive class 95 of the railway company of the German Democratic Republic (Deutsche Reichsbahn).
-
Completely new design
-
Available for the first time – a mass-produced model with a new boiler
-
Finely detailed model with many separately attached plug-in parts
-
Wheels with fine spokes
-
With dynamic steam and faithfully reproduced sounds
-
Version with oil firing
This type of steam locomotive was the strongest tender locomotive ever procured by the Deutsche Reichsbahn-Gesellschaft. In total, 45 examples of this gigantic machine were built. Its nickname "Bergkönigin" (mountain queen) was the result of its predominant use on lines such as the Sonneberg-Probstzella, the Spessart Ramp, the Franconian Forest Railway, the Geislinger Steige, the Schiefe Ebene and the Rübeland Railway. After the Second World War, 31 locomotives were acquired by the Deutsche Reichsbahn. In the 1950s, the boiler equipment, fittings, pumps, driver's cab, etc. were adapted to the DR requirements in the course of their maintenance and were thus largely standardised. Between 1966 and 1972, 24 engines were converted to oil main firing and ten locomotives were fitted with a new boiler without a feed dome. The Eisfeld-Sonneberg railway line was their last area of operation. The last of these engines remained in service until 1981.
Railway company: Epoch: IV Gauge: H0 Elect.system: DC
General Data |
|
Coupling: |
NEM shaft 362 with close coupling mechanism |
Minimum radius: |
358 mm |
Switchable smoke generator: |
yes |
Flywheel: |
yes |
|
|
Electrical |
|
Digital decoder: |
PluX22 |
Sound: |
yes |
Interface: |
Electrical interface for traction units PluX22 |
Head light: |
Both sides of the vehicle are equipped with direction dependent triple headlights. |
Buffer capacitor: |
yes |
Motor: |
5-pole motor |
LED head light: |
yes |
|
|
Measurements |
|
Length over buffer: |
174 mm |
