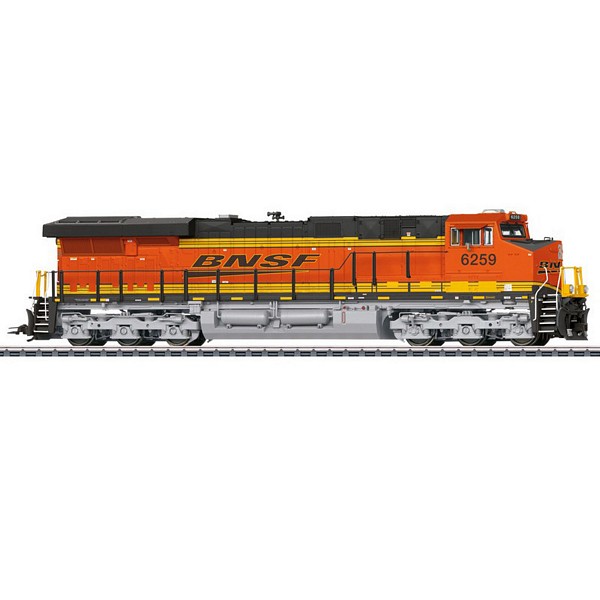

Marklin 38446 Type GE ES44AC Diesel Locomotive
Model: The locomotive has an mfx+ digital decoder and extensive sound and light functions. It also has controlled high-efficiency propulsion with a flywheel, centrally mounted. Two axles powered in each truck using cardan shafts. Traction tires. The locomotive has four headlights on the front and two lamps next to each other on the rear of the locomotive. These lights change over with the direction of travel, will work in conventional operation, and can be turned off in pairs in digital operation. The cab lighting, number board lighting, long-distance headlights, and the blinking function of the headlights can be controlled digitally. Maintenance-free, warm white LEDs are used for the lighting. The locomotive has a factory- installed smoke generator with dynamic smoke exhaust, and it can be controlled digitally. It also has many separately applied details. The NEM pockets can be fixed in place using shims included with the locomotive for operation with knuckle couplers. A pilot with a small cutout for the front, brake hoses, and two shims for the NEM pocket are included. Length over the couplers approximately 27 cm / 10-5/8“.
Highlights:
-
Factory-installed smoke generator with dynamic smoke exhaust
-
Many controllable light and sound functions
-
Cab lighting can be controlled digitally
-
Lighted number boards can be controlled digitally
-
Long-distance headlights can be controlled
-
Centrally mounted motor, four axles powered using cardan shafts
-
Operation possible with knuckle couplers and normal close couplers
-
mfx+ decoder
This model can be found in the Trix H0 assortment under item number 25446.
Properties:
-
Metal frame and locomotive body
-
mfx+ digital decoder
-
DCC decoder
-
Built-in sound effects circuit
-
Triple headlights and two white marker lights that change over with the direction of travel
-
Marklin close couplers in standard pocket with pivot point
-
Era 6
Digital Functions:
|
Control Unit
|
Mobile Station
|
Mobile Station 2
|
Central Station 1/2
|
Central Station 3/2*
Mobile Station 2** |
Headlight(s) |
• |
• |
• |
• |
• |
Smoke generator contact |
• |
• |
• |
• |
• |
Steam locomotive op. sounds |
• |
• |
• |
• |
• |
Horn |
• |
• |
• |
• |
• |
Direct control |
• |
• |
• |
• |
• |
Sound of squealing brakes off |
|
• |
• |
• |
• |
Engineer’s cab lighting |
|
• |
• |
• |
• |
Switching maneuver |
|
• |
• |
• |
• |
Whistle for switching maneuver |
|
• |
• |
• |
• |
Number Board Lights |
|
|
• |
• |
• |
Long distance headlights |
|
|
• |
• |
• |
Light Function |
|
|
• |
• |
• |
Front Headlights off |
|
|
• |
• |
• |
Cab Radio |
|
|
• |
• |
• |
Front Headlights off |
|
|
• |
• |
• |
Blower motors |
|
|
• |
• |
• |
Bell |
|
|
|
|
• |
Sound of Couplers Engaging |
|
|
|
|
• |
Sound of uncoupling |
|
|
|
|
• |
Special sound function |
|
|
|
|
• |
Rear Headlights off |
|
|
|
|
• |
Opening cab door |
|
|
|
|
• |
Letting off Air |
|
|
|
|
• |
Sanding |
|
|
|
|
• |
Compressor |
|
|
|
|
• |
Replenishing diesel fuel |
|
|
|
|
• |
Procedure function |
|
|
|
|
• |
Cab Radio |
|
|
|
|
• |
Cab Radio |
|
|
|
|
• |
* New features of the Central Station 2 (Part No. 60213, 60214 or 60215) with the software update 4.2
** New features of the Mobile Station 2 (Part No. 60657/66955) with the Software Update 3.55
Warning: Adults only.
