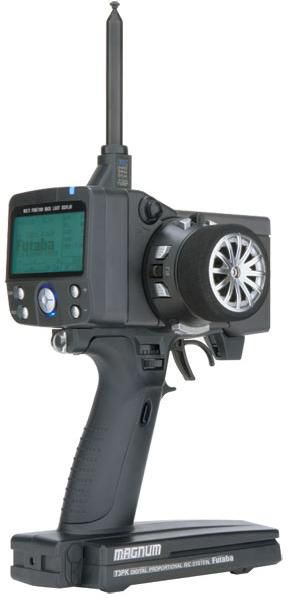

Futaba TK25 PKS 3-Channel Black R203HF-No Servos 75MHz

Futaba TK25 PKS 3-Channel Black R203HF-No Servos 75MHz
FEATURES:

• Upgrades over the original 3PK include;
• Expanded Driver Menu, with "New Driver" "Race-Ready" and "Expert"
• menus and a mid-level "Big" menu for drivers of 1/5 scale and
• larger vehicles
• Redesigned Keypad, with jog button giving access to four different
• directions by moving button left, right, up or down and then
• pushing in
• Vibrating Alert System, functions like a timer to let driver know
• when to bring a nitro car in for a pit stop or check battery life
• of electric model
• Increased Model Memory, 20 models also compatible with CAMPac module
• that adds another 10 models
• Throttle Mode Select, choice of two servo neutral points 70/30 for
• nitro models and 50/50 model for electrics

Features unchanged from the original 3PK include:

• APA (Advanced Positioning Adapter) for customizing balance and
• wheel position
• Large Backlit LCD Screen with adjustable contrast and 128 x 64
• resolution
• "Direct Select" single button access to 8 preassigned functions
• Adjuster feature restores compromised settings to factory default
• Assignable switch and dial functions
• 10 Digit Model and user naming: English or Japanese characters
• PCM/PPM/HRS Selectable with 3-ch adjustable FailSafe for PCM/HRS
• 3 Function selection modes (New User, Race Ready Driver and Expert
• provide 1/2/3 menus of features for just the right fit!)
• PLUS the direct selection 2-key menu to up to 6 functions.
• Steering Dual Rate and Dual Rate 2, both adjustable while driving
• Servo display to show all 3 servo positions for easy setup/diagnostic
• Anti-Skid Brake System (ABS) (Keeps tires from skidding, or
• locking-up, even on gas cars) (with 5 adjustments)
• Throttle Acceleration (decreases lag time before clutch or brakes
• are engaged)
• Steering and throttle exponential (3 forward expo types)
• end point adjustments for all 3 channels (EPA/ATV)
• Steering and Throttle servo speed limiters
• Brake mixing for 1/5th scale cars w/ separate front and rear brakes
• System adjustments for back lighting, pilot lamp color, home display
• Servo Reversing
• Idle-up for easy starts and engine cut for boat engine shut off
• Start (Preset throttle start control. Limits throttle at the
• beginning of a race to give smoother acceleration and less wheel
• slip.) (similar to traction control on 3PJS)
• Advanced timer w/100 lap recall & trigger activation
• Trim/dial function selection (can assign different functions to the
• different trim controls and dials)
• Subtrim adjustments
• Step trim adjustments (allows changing of trims in finer increments)
• Programmable mixing
• Tilt mixing for adjusting the trim tabs with the 3rd channel on boats
• Third channel assignable to any dial/switch/trimmer/mix
• MC-SETUP function for HRS receivers to properly setup ESCs
• ADJUSTER function to manually calibrate trigger and wheel

EQUIPMENT FEATURES:

• Optional DSC cord support for operating receivers without transmitting
• LARGE REAR Facing LCD plus Seven Color Pilot Lamp for easy ID.
• One Year Warranty
• Digital trim with reset
• Left Hand reversible
• Steering wheel tension adjust (can be adjusted without opening radio)
• Trigger stop function (mechanical ATL) and programmable ATL
• Display switch (allows functions to be set without transmitting)
• Audible, adjustable alarm tone and lap counting tones
• Headphone jack for hearing the alarm tones at a noisy track

INCLUDES:

• 3PK Super Transmitter with frequency module and antenna
• R203HF 75MHz Receiver, FUTL0344
• Transmitter NiCd NT8F700B, FUTM1462
• Switch Harness, FUTM4350
• Offset wheel adapter and screws
• Instruction manual and warranty card
• Frequency flag
• Hex wrench
• Charger FBC-19B(4), FUTM1830

OPTIONAL:

• Campac 16K, 10 Model Memory, FUTM9405
• DSC cord-To use the DSC function use-DSC Cord, FUTM4245
• MC SETUP cord
• Dry cell transmitter battery case, FUTM1563

REQUIRES:

• Digital servos (if using in HRS mode)
• Receiver NiCd battery

SPECS:

• Transmitter, available separately (FUTK2010)
• Operating System: FM/PPM, HRS_FM or PCM1024 switchable
• Transmitting Frequency: 27MHz
• Power Supply: 9.6V NiCd
• Current Drain: 250mA or less
• 75MHz R203HF Receiver
• Dimensions: 1.x1.5x.5" (25.4x37.6x14.4mm)
• Weight: .6oz (17.4g)
• Receiving Frequency: 75MHz (channels 61-90)
• Intermediate Frequency: 455kHz
• Power Supply: 6V (NiCd 5 cells)
• Current Drain: Approx. 95mA

COMMENTS: This radio is sold without servos 6V when using an HRS receiver. Non-digital servos are fine on
