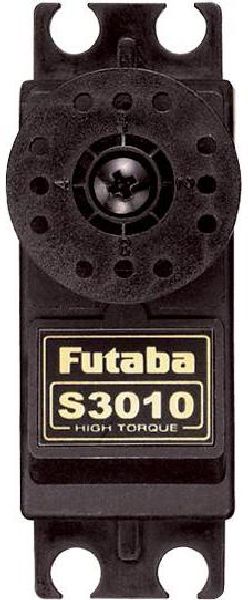

Futaba 3010 High Torque Standard Size Ball Bearing Servo

Futaba 3010 High Torque Standard Size Ball Bearing Servo
FEATURES:

The Futaba S3010 High Torque Ball Bearing Servo is ideal for high-torque applications requiring a standard size servo. It includes a universal connector which fits Futaba, Hitec, JR, KO Propo, Airtronics Z, and Tower Hobbies receivers. The S3010 servo features nylon gears

INCLUDES:

• One Futaba standard-size high-torque servo
• One 1.4 in (35 mm) diameter round servo wheel
• One 1.5 in (39 mm) diameter 4-point servo wheel
• One 1.25 in (32 mm) diameter 6-point servo wheel
• Four 2 x 11 mm Phillips screws
• Four rubber grommets
• Four metal eyelets

SPECS:

• Speed: 0.20 sec/60° @ 4.8V; 0.16 sec/60° @ 6.0V
• Torque: 72 oz-in (5.2 kg-cm) @ 4.8V; 90 oz-in (6.5 kg-cm) @ 6V
• Dimensions: 1.6 x 0.8 x 1.5 in (40 x 20 x 38 mm)
• Weight: 1.5 oz (41 g)
